Flexitwin
Recommended Shapes
Recommended for large size/volume & Geometrically Dissimilar shapes.
Production Facility
Facility to add Extra station for higher production when required.
Heating Timing
Average heating time; 3-3.5 minutes/1 mm Thickness of plastic Resin Material.
Controls & Display
Microprocessor based machine control panel with digital display.
Timing
Shorter Playback Period.
Equip By
Equipped with Control/ Interlocking/ Safety/ Devices/ Indicators and Alarms.
Heating Design
Optimally designed heating chamber for energy efficient heat transfer to the moulds for fast and short cycle time.
Material
Special Insulation material for better work environment.
Specialty Of Arms
Arm of Specially treated Material for Round the clock working.
User Friendly
User friendly Multilayer/ PE Foam charging facility
Position & Balance
Inbuilt mould positioning and balancing facility .

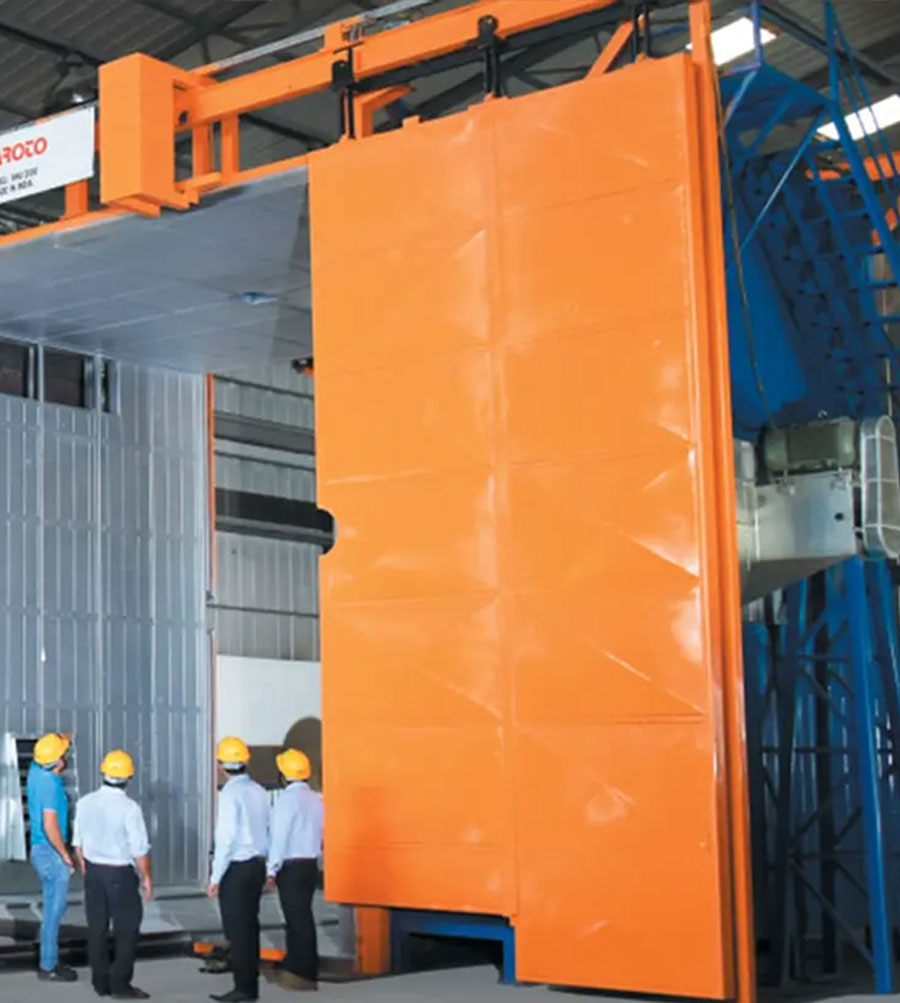

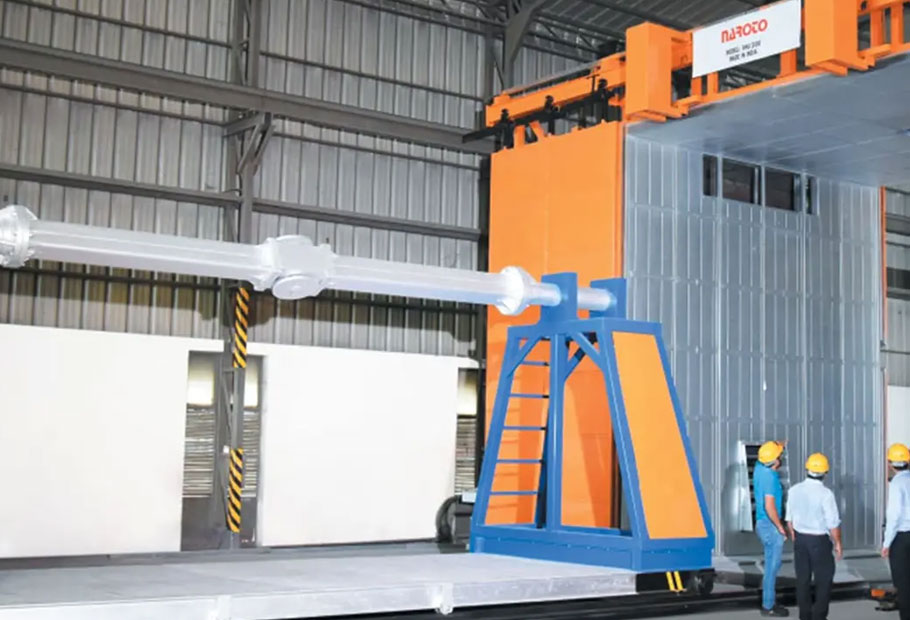

Shuttle type Rotomoulding machines are specially designed to hold large moulds as well as multiple moulds with various capacities. Provision for such large mould carrier plates and arms are provided for both side support for sturdy and comfortable operation instead of cantilever type station arms which is a special feature for the shuttle type machines.
Oven Chamber Size
6.0 meters
Model Available
Fix Oven With Moving Station-1-2 Station Moving Oven With Moving Station -1-4 Station
Geometrically Dissimilar Shapes
Flexitwin
|
Model |
Floor Space (Mtrs) |
Offset Arm Swing (mm)* |
Straight Arm Swing (mm)* |
||||
|---|---|---|---|---|---|---|---|
|
L |
B |
H |
Major* |
Minor |
Major* |
Minor |
|
|
NAROTO-SHU-0200 |
8.5 |
5.5 |
3.7 |
2700 |
1600 |
2700 |
1800 |
|
NAROTO-SHU-0500 |
11 |
6.5 |
4.2 |
3400 |
2100 |
3400 |
2600 |
|
NAROTO-SHU-1000 |
14 |
7 |
5.2 |
4100 |
2670 |
4100 |
3400 |
|
NAROTO-SHU-2000 |
16 |
8.5 |
6.7 |
5300 |
3250 |
5300 |
3800 |
Accessories shown on machine images are not part of standard scope of supply.
*Gross Rotating Area
