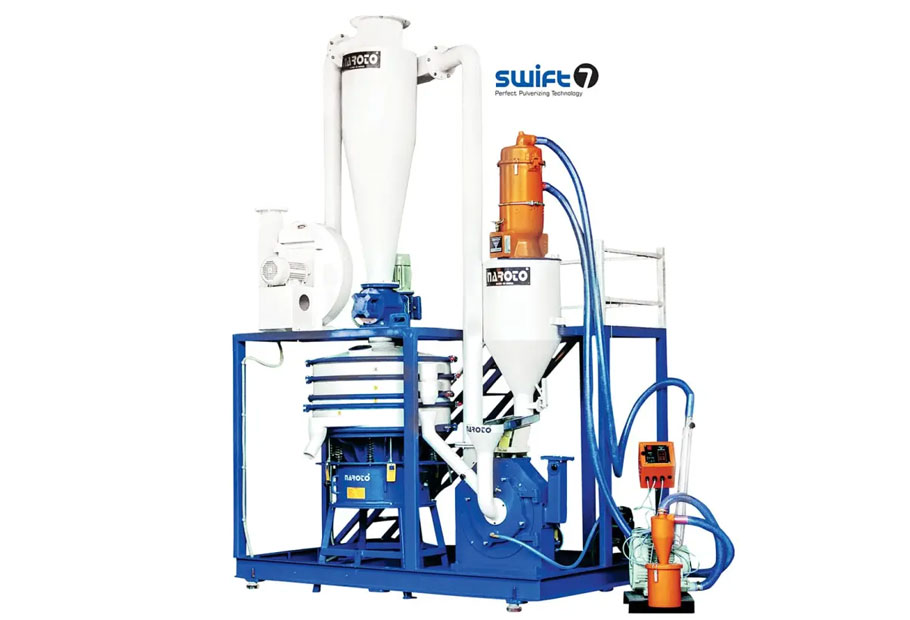

Pulveriser for rotomoulding
Free flow Fine Powder
Free flowing & Fine Powder Quality Resulting, Lower Heating Time & fuel consumption in Roto Process
Grinding Type
Uniform & smooth powder / partical size.
Control Panels
Microprocessor based machine control panel with digital display.
Temperature
Temperature indicator for monitoring and control.
Cleaning Type
Well designed Cyclonic system for ease of cleaning With bag filter (on request) arrangement.
High Efficiency
High efficient hopper magnet provided in hopper to detect the metallic parts from the polymer. Optionally, metal detector sensor will be provided on request.
Indicator
Feeding hopper showing low level indicator.
system available
Auto tripping system available in case of overload feeding.
Power
Main motor ampere and feeding device are synchronized to avoid tripping of motor due to over feed.
Naroto Pulverisers are specially designed to Grind varieties of granulated material including high and low density plastics like: LLDPE (Reliance : 36RA045 & R35042, Sabic : R 50035 & M500026, IOL : 042R35A, HALENE-L : 73004T & 73005T, EL- LENE : M380/!lRU/RUP & M735RW/RWP, G-LENE : R35A042), LDPE (16 MA 400 IPCL grade for textile and wire coating), LLDPE, HDPE (26500 Reliance grade for master-batch), RPVC, CPVC, UPVC, EVA, etc.
With the support of in-house R&D, we are pioneer in the field of manufacturing Pulveriser Machine with proven technology. More than 1100+ Pulveriser Machines are successfully running all over the world.
Heavy Duty Construction
User Friendly
One Piece Disc
Pulveriser for rotomoulding
|
LLDPE |
||
|---|---|---|
|
MODEL |
PROD.KG/HR#20 MESH |
PROD.KG/HR#35-40 MESH |
|
LPU-30-30 |
130-140 |
120-130 |
|
LPU-40-40 |
150-180 |
140-160 |
|
LPU-40-60 |
220-250 |
200-230 |
|
LPU-60-75 |
260-300 |
240-270 |
|
LPU-60-120 |
450-500 |
360-450 |
|
RPVC/CPVC/UPVC |
|
|---|---|
|
MODEL |
PROD.KG/HR #20 MESH |
|
RPU-30-30 |
150-160 |
|
RPU-40-40 |
175-200 |
|
RPU-40-60 |
270-300 |
|
RPU-60-75 |
320-350 |
|
RPU-60-120 |
500-550 |
*LLDPE : Linear Low-Density Polyethylene
*LDPE : Low-Density Polyethylene
* RPVC: Rigid Polyvinyl Chloride
* Master Batch : Filler, 16 MA 400
N.B. : Production & Blade life depends on polymer materials & filler %. Suggested Material feed size 4-6 mm for regrinding.Accessories shown on machine images are not part of standard scope ofsupply
