Asia’s No.1
Rotomoulding Machinery
Asia’s No.1
Rotomoulding Machinery
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
We NAROTO Asia's No.1 Rotomoulding Machinery and Moulds Manufacturer providing ONE STOP Solution for Turnkey projects ensuring best Services and Support. State of the Art manufacturing facility spread over 2,00,000 sq. ft.
|
Speed 90
Heating Time
Average Heating Time 3 To 3.5 Minutes/ 1mm Thickness of plastic Resin Material.
Average Fuel Consumption
70-100 Gms* (LPG)/Kg of Polymer.
Specialty of Arms
Special Grade Arms Material With All Metal Treatment To Make Sure They Rotates Round The Clock
Ability Of Arms
User Freindly Interchangeable Arms.
Oven Insulation
Special Grade Insulation Which Ensure No Heat Loss.
Machine Safety
Machine Controls Are Equipped with necessary inerlocks/Indicators And Safety Alarms.
Fuel
Environment friendly burners suitable for LPG/ CNG/ OIL/ Dual Fuel Burners.
Machine Operation
Microprocessor based machine control panel with digital display. Equipped With Fully Automatic Scada Plc System Having Digital Display.
Layer Charging Facility
user Freindly Lift For Multilayer/PE Foam Charging

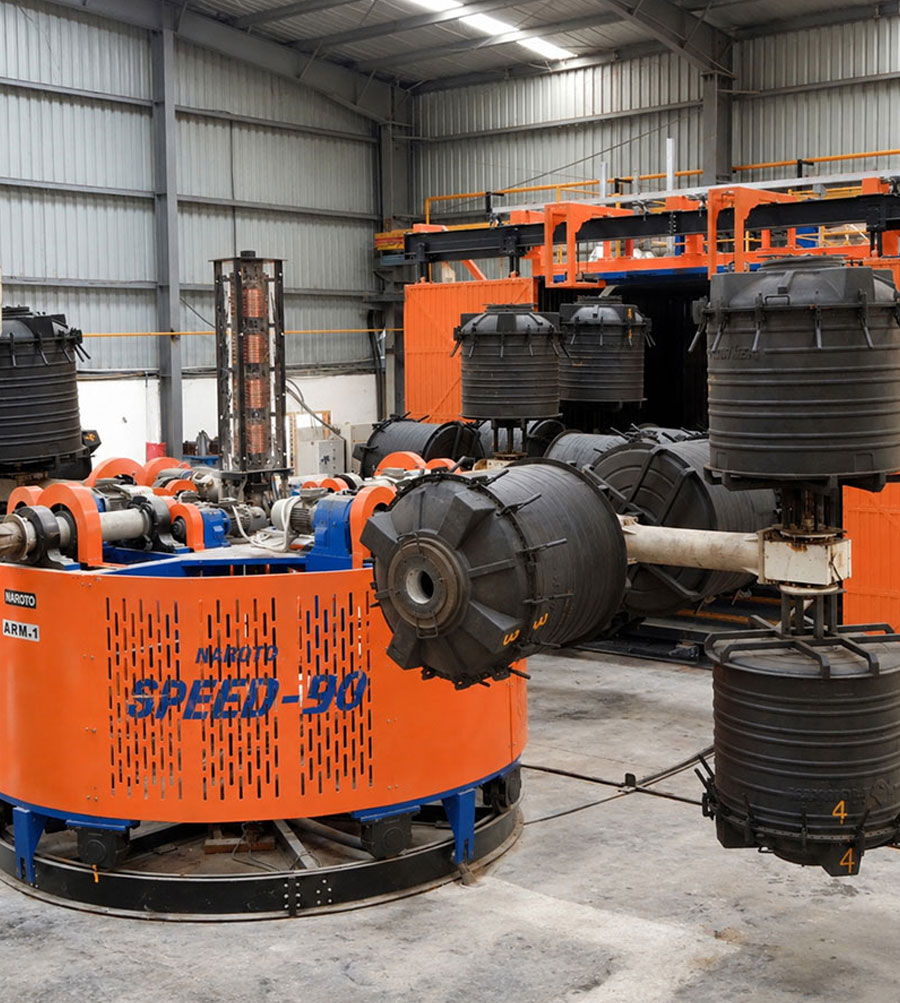

"The principal applications of NAROTO four fixed arm machine in which the process time for each arm requires an equal amount of time for loading heating, cooling and unloading.
According to Rotomoulding process Four arm Machine is most suitable.The machine processes without interruption for the same recipe product with minimum cycle time, fuel efficiency and high productivity."
Oven Chamber Size
3.8 Meters
Mould Suitability
500 X 8 , 1000 X 4 , 5000 X 1
High Productvity
fuel efficiency
Speed 90
|
Model |
Floor Space (Mtrs) |

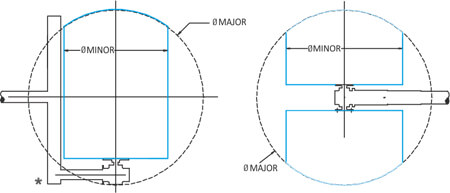

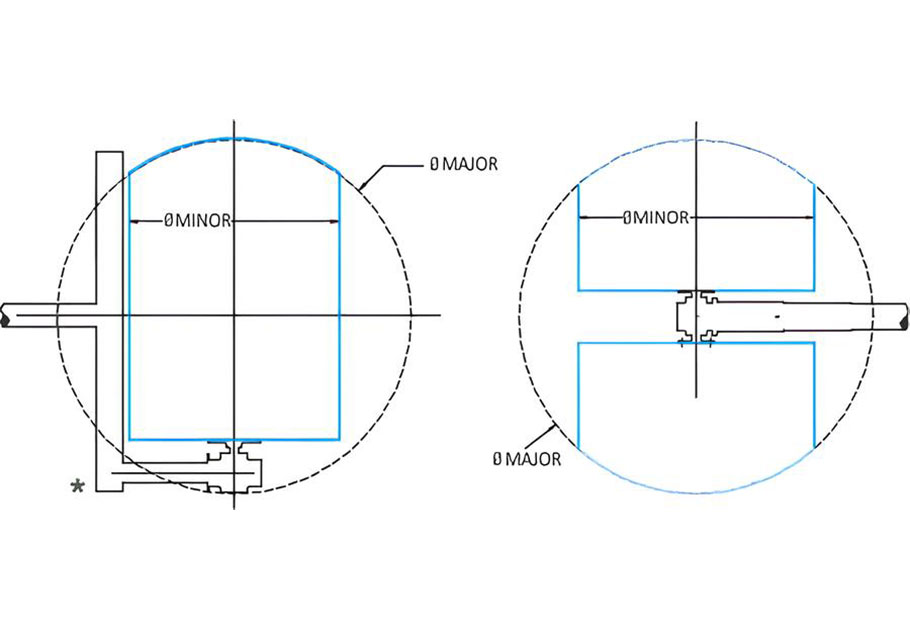

Straight Arm Swing (mm)* |
Offset Arm Swing (mm)* |
||||
|---|---|---|---|---|---|---|---|
|
L |
B |
H |
Major* |
Minor |
Major* |
Minor |
|
|
RPID 4S- 0200 |
14 |
10 |
6 |
3200 |
1600 |
2800 |
1450 |
|
RAPID 2X - 0200 |
16.5 |
12 |
7 |
4100 |
1600 |
- |
- |
|
SPEED-90 - 0500 |
18 |
13 |
6.5 |
3600 |
2800 |
3600 |
2300 |
|
SPEED-2X - 1000 |
23 |
16 |
7 |
4300 |
3600 |
4300 |
2700 |
|
SPEED-2X - 2000 |
25 |
17 |
8 |
5800 |
3600 |
5500 |
3000 |
Accessories shown on machine images are not part of standard scope of supply.
*Gross Rotating Area
